LIMIT STRAP KIT FOR POLARIS RZR PRO XP & XP4

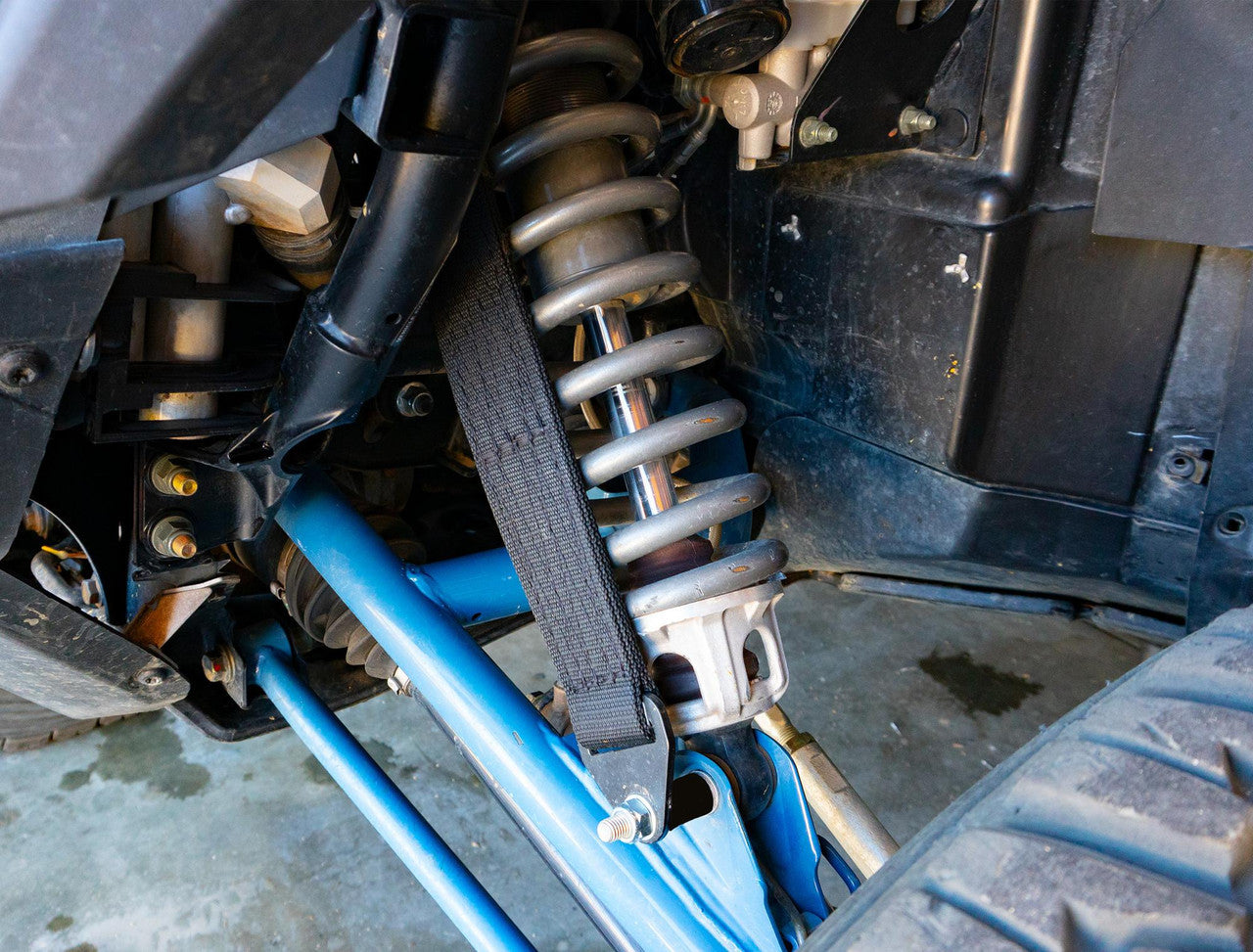

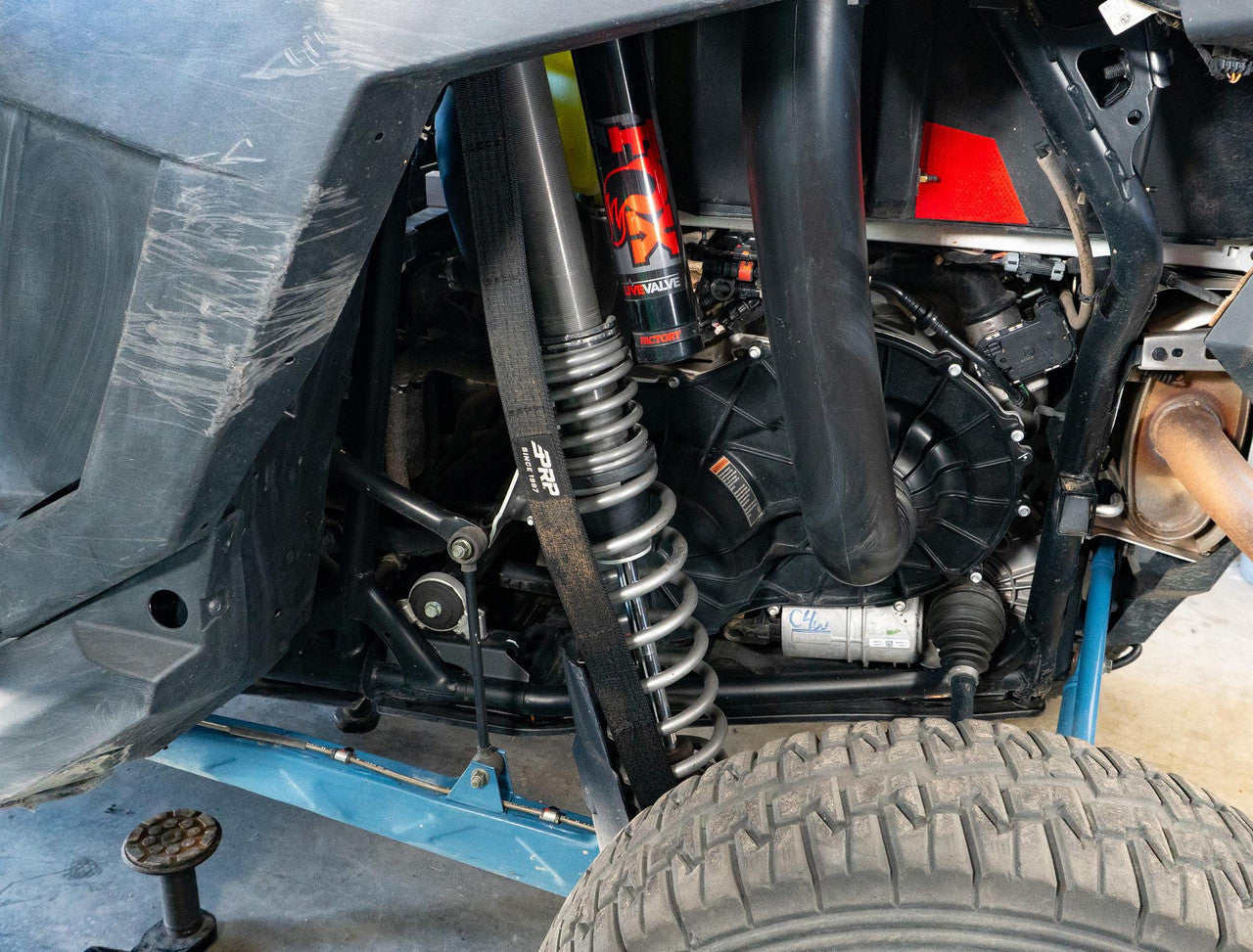

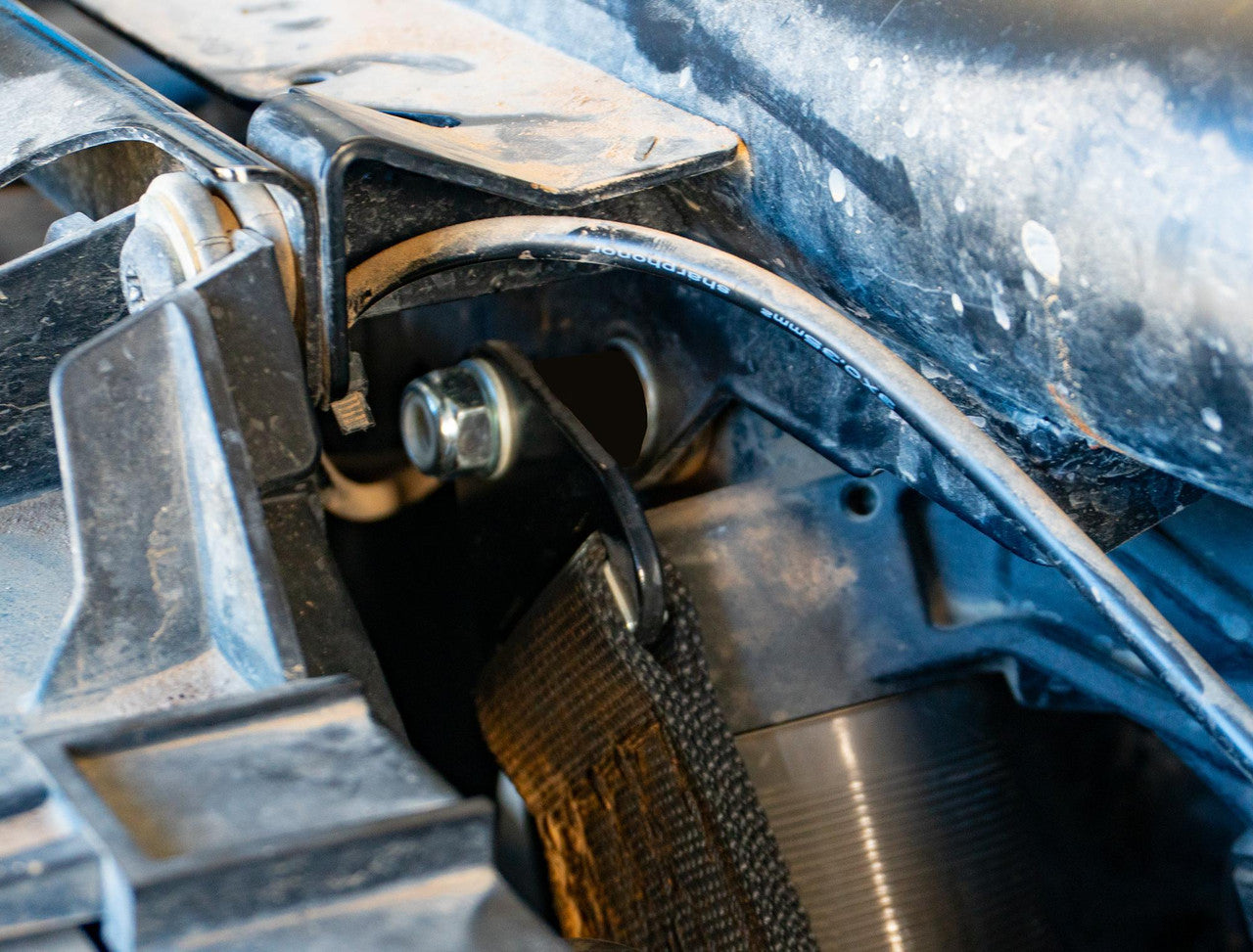

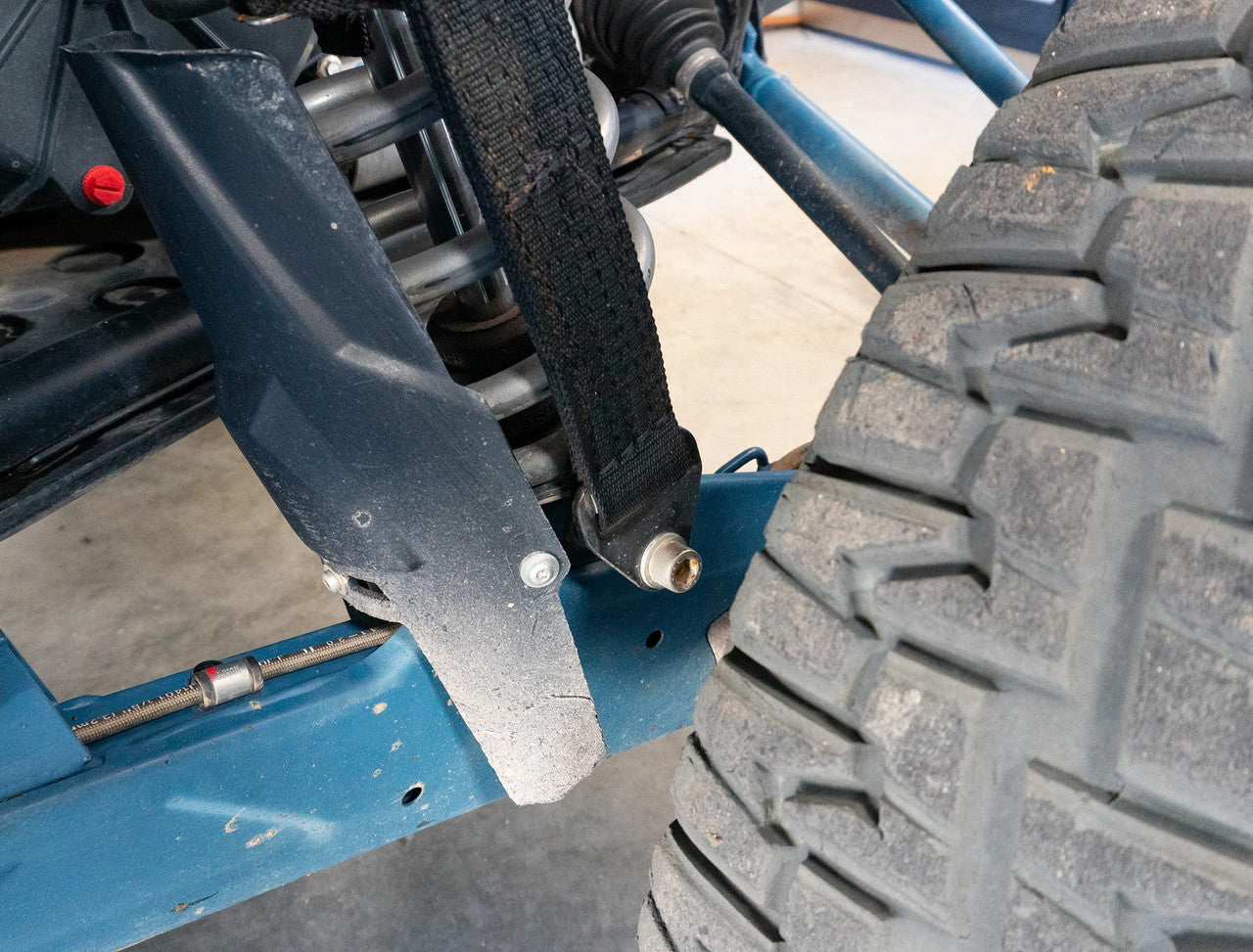

PRP has put together suspension limit strap kits for the Polaris RZR PRO XP. These kits are easy to bolt-on for stock length shocks, which simply mount on to the shock bolts. No modifications or welding required.

The kit provides you with hardened bolts that are longer than OEM, along with new washers and powder coated spacers for the limit straps. The limit straps are PRP quad layer limit straps, which have been proven over the years with Trophy Trucks and Class 1 buggies. An included limit strap tether keeps your straps from bunching up and hitting the tire or exhaust.

Limiting Strap Information

Limiting straps are vital in custom suspension setups that help prevent damage to suspension and drivetrain components. Without limiting straps, your shocks are the stops at maximum droop. The shock from your vehicle’s un-sprung weight can cause damage to shocks such as when jumping or at high speed over rough sections.

Limiting straps can also prevent damage to your CV joints by limiting the amount of maximum angle on your axles. All CV joints have a maximum amount of degree deflection that they can safely be run at with custom suspension setups. With many suspension setups, the deflection angle can go farther than the CV joint can handle resulting in damage, shorter run life, and CV failure.

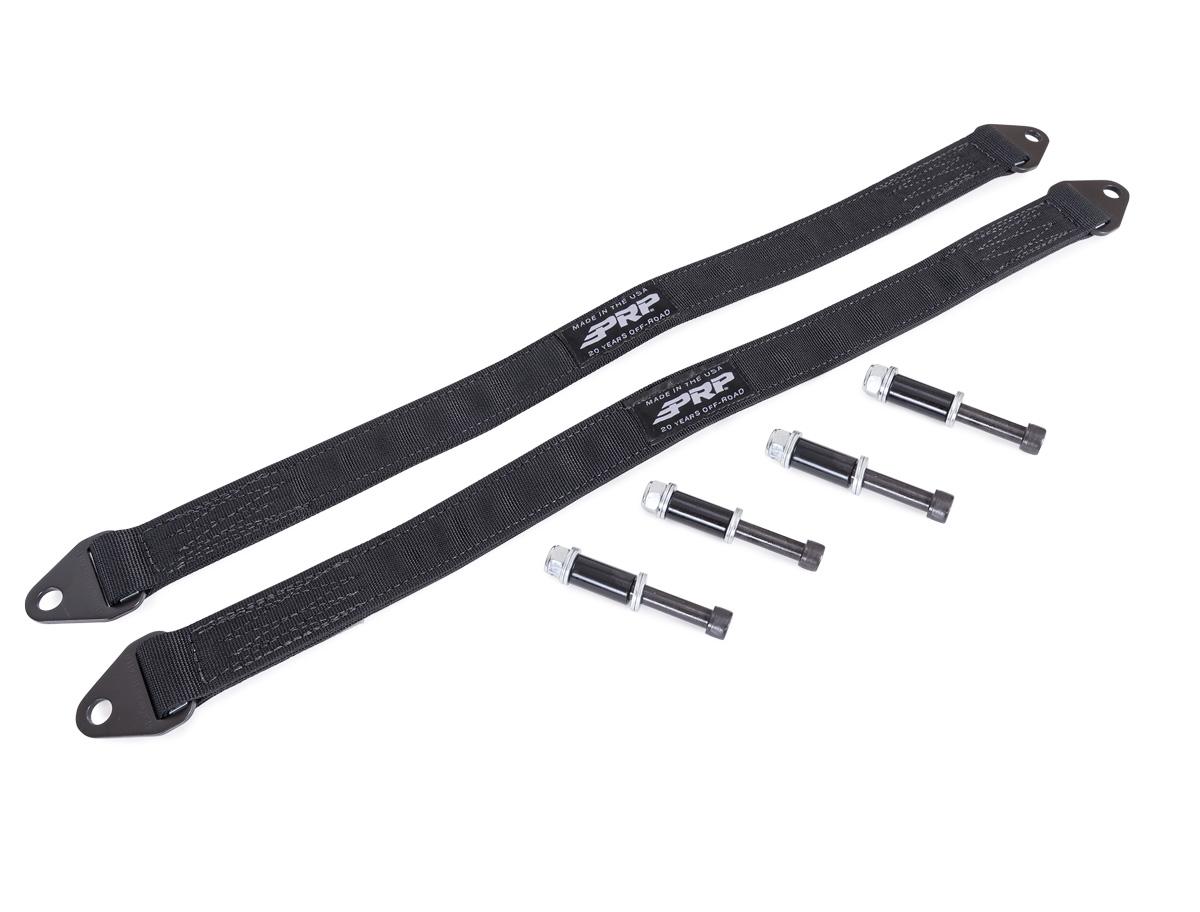

Includes:

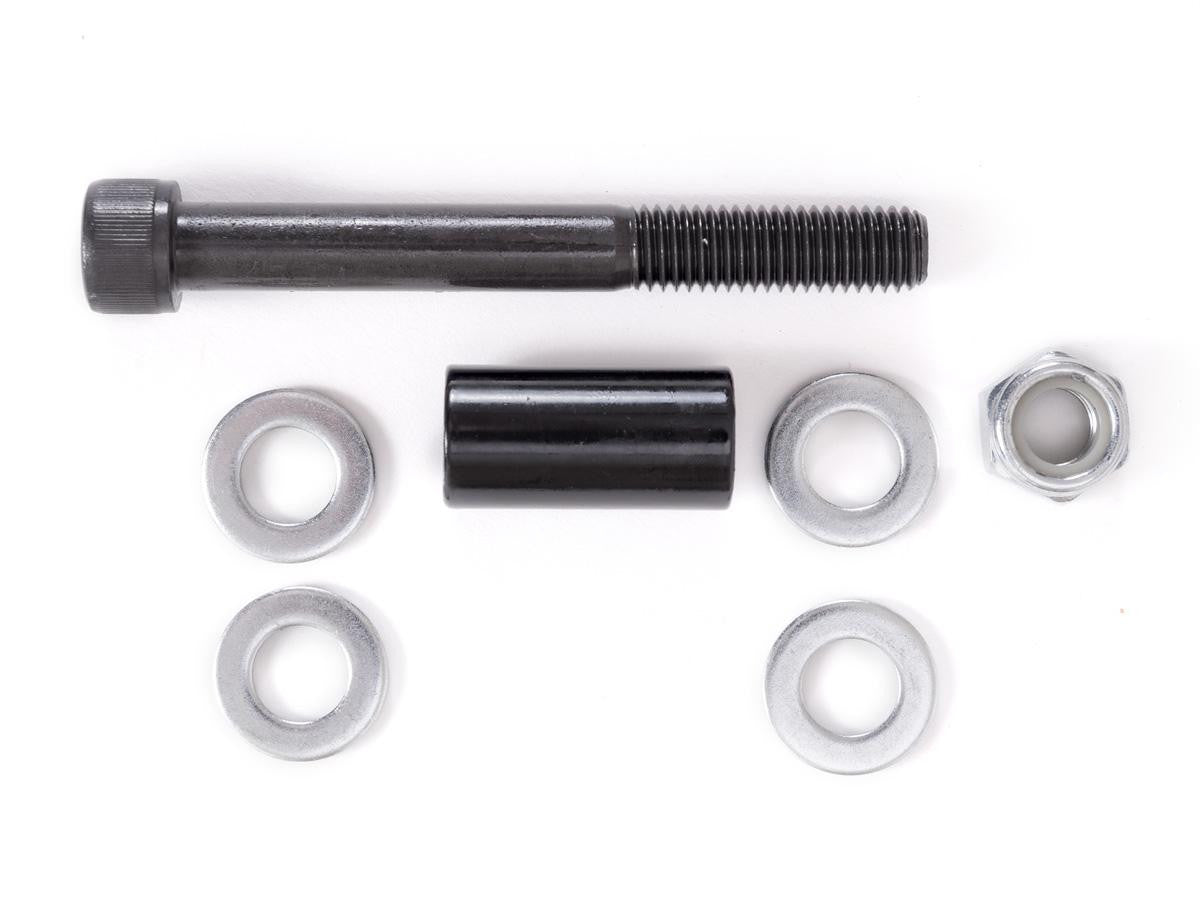

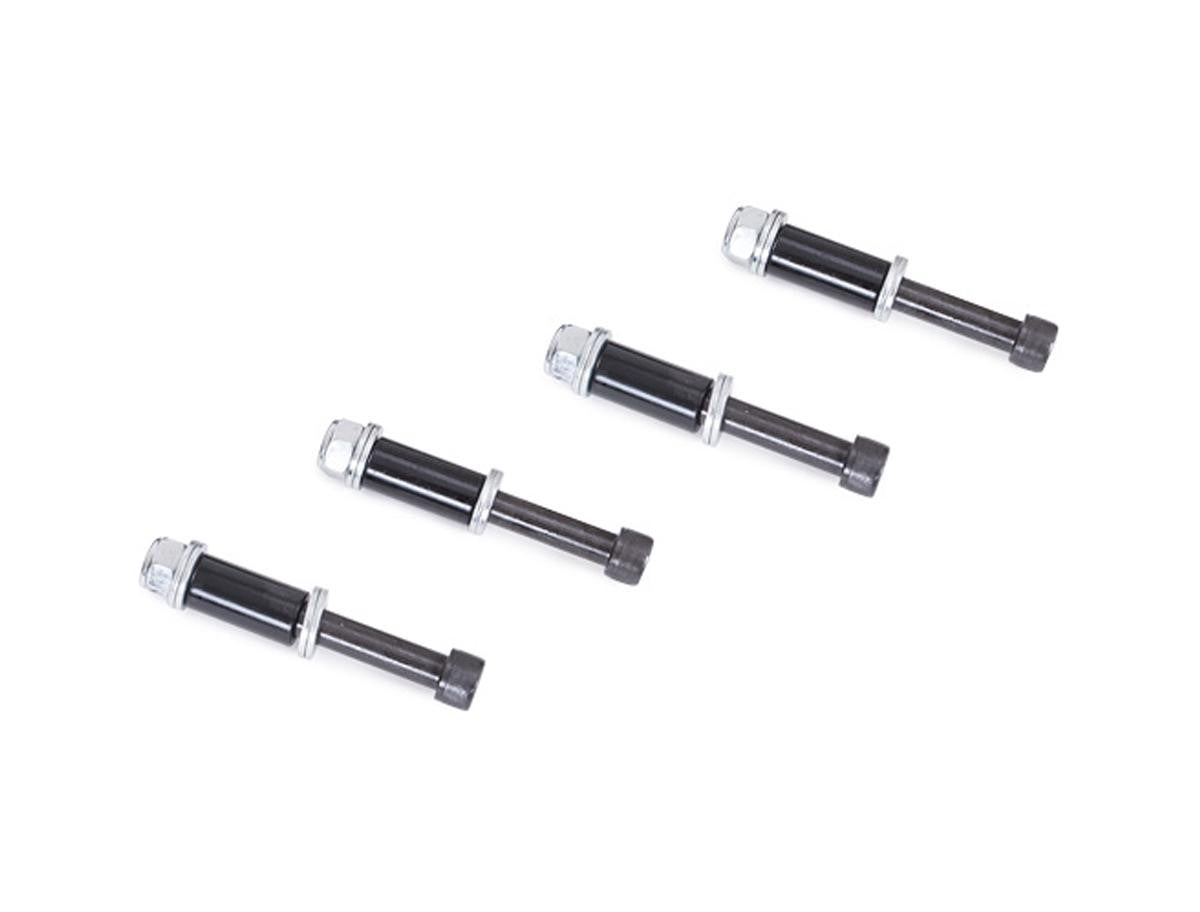

-4 longer shock bolts (FRONT - M10 X 1.50 X 90MM on top, M10 X 1.5 X 100 MM on bottom) (REAR - M12 1.75 x 110mm Top and Bottom Shock Bolt)
-12 shock bolt washers (FRONT- M10 Flat) (REAR - M12 Flat)
-4 shock bolt spacers powder coated black (FRONT - 3/4" for top, 1.25" for bottom) (REAR - 1.5" for top and bottom)
-4 shock bolt nuts (FRONT - M10 X 1.50) (REAR -M12 X 1.75)
-2 PRP quad layered limit straps (26" for Front, 37" for Rear)

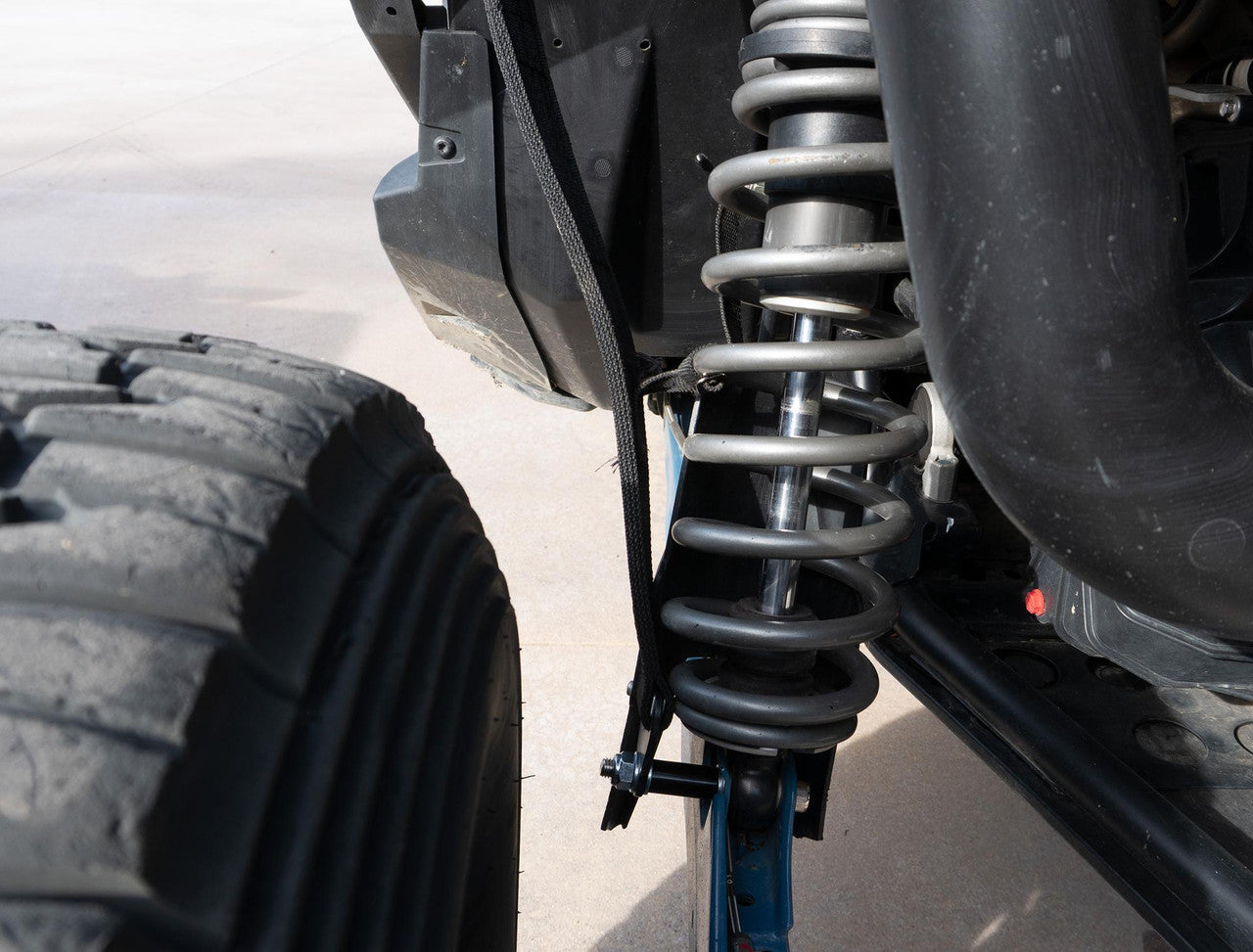

-2 PRP Limit Strap Tethers

Mounts On
Polaris RZR PRO XP – All Years
Polaris RZR PRO XP4 – All Years

About Limit Straps

Limit straps are vital in custom suspension setups helping to prevent damage to suspension and drivetrain components. Without limit straps the force of your vehicle’s unsprung weight can cause damage to shocks when jumping or at high speeds over rough sections.

Limit straps can also prevent damage to your CV joints. All CV joints have a maximum amount of degree of deflection at which they can safely be run. With custom suspension setups. the deflection angle can go farther than the CV joint can handle, resulting in damage, shorter run life, and CV failure. Limit straps can prevent this by reducing the amount of maximum angle on your axles.

VEHICLE FITMENT:

• POLARIS RZR XP 1000/4
• POLARIS RZR XP TURBO/4
• POLARIS RZR RS1
